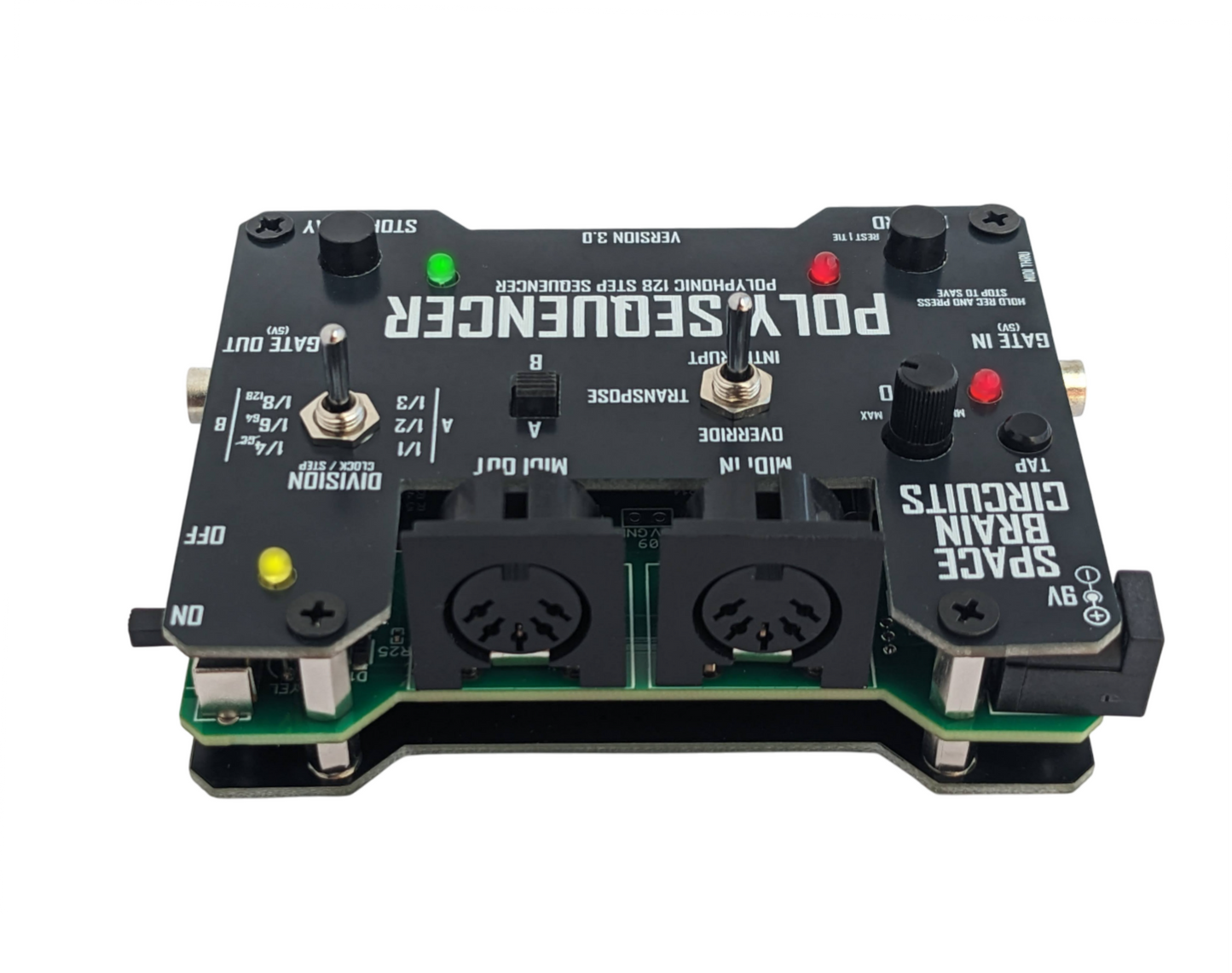

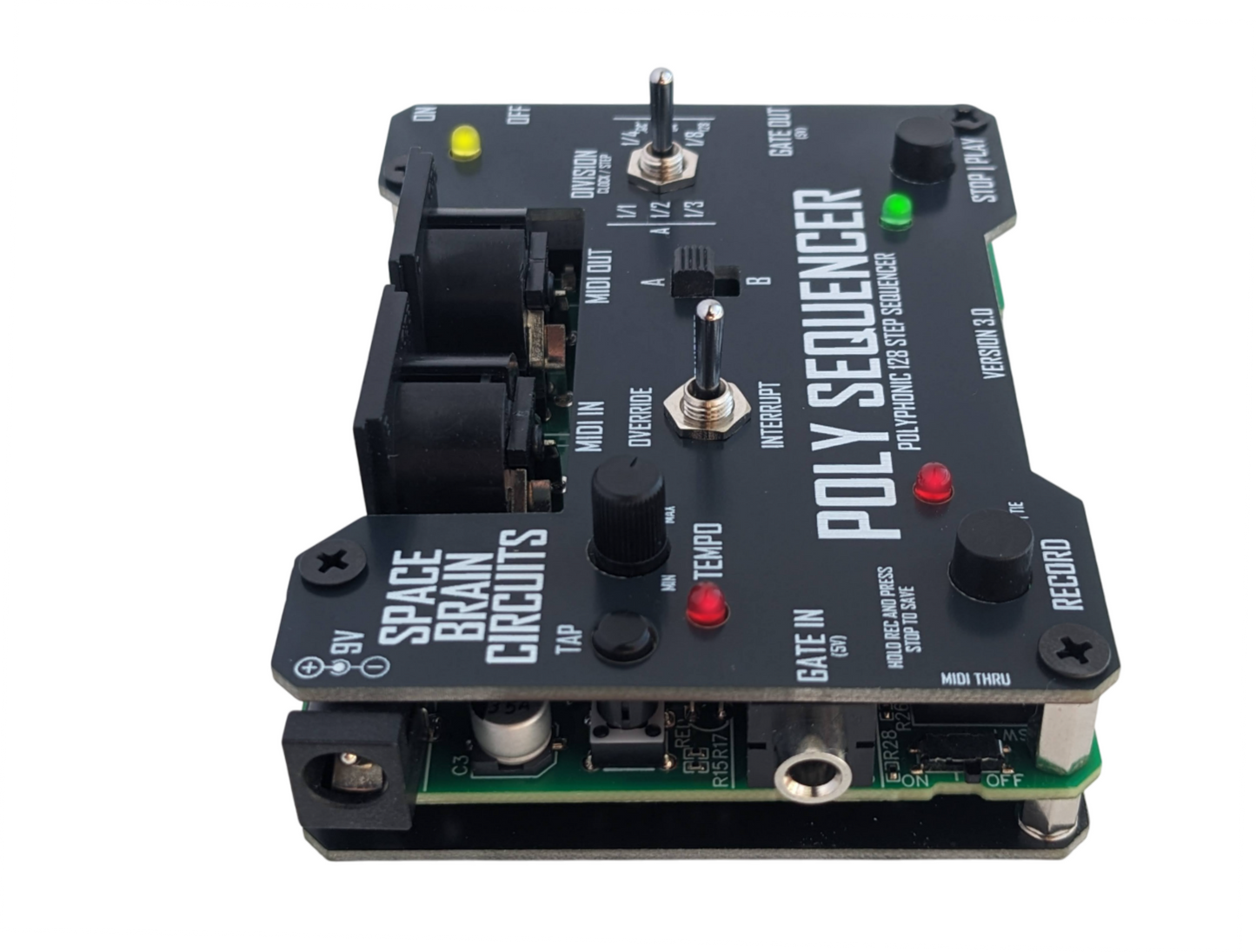

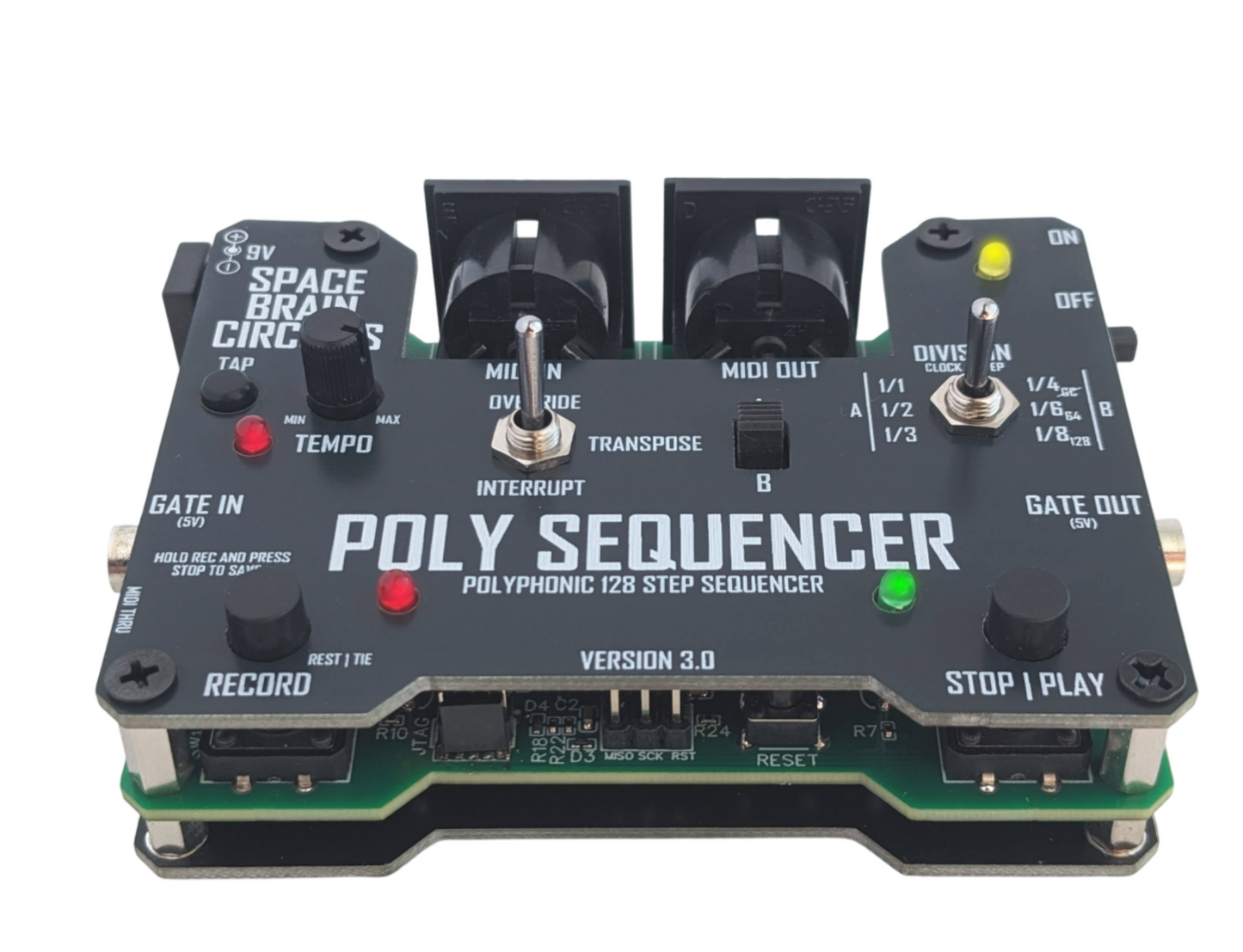

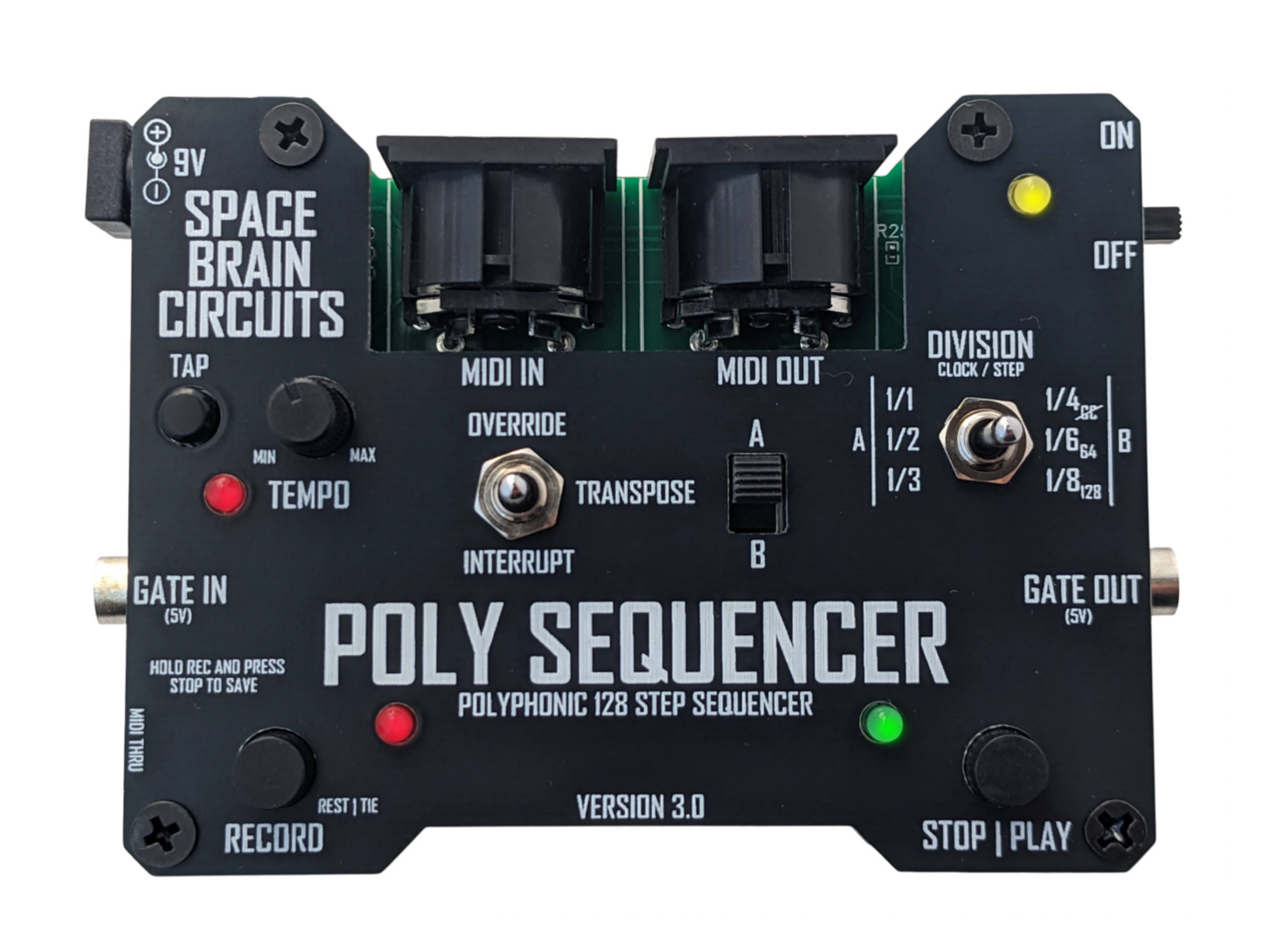

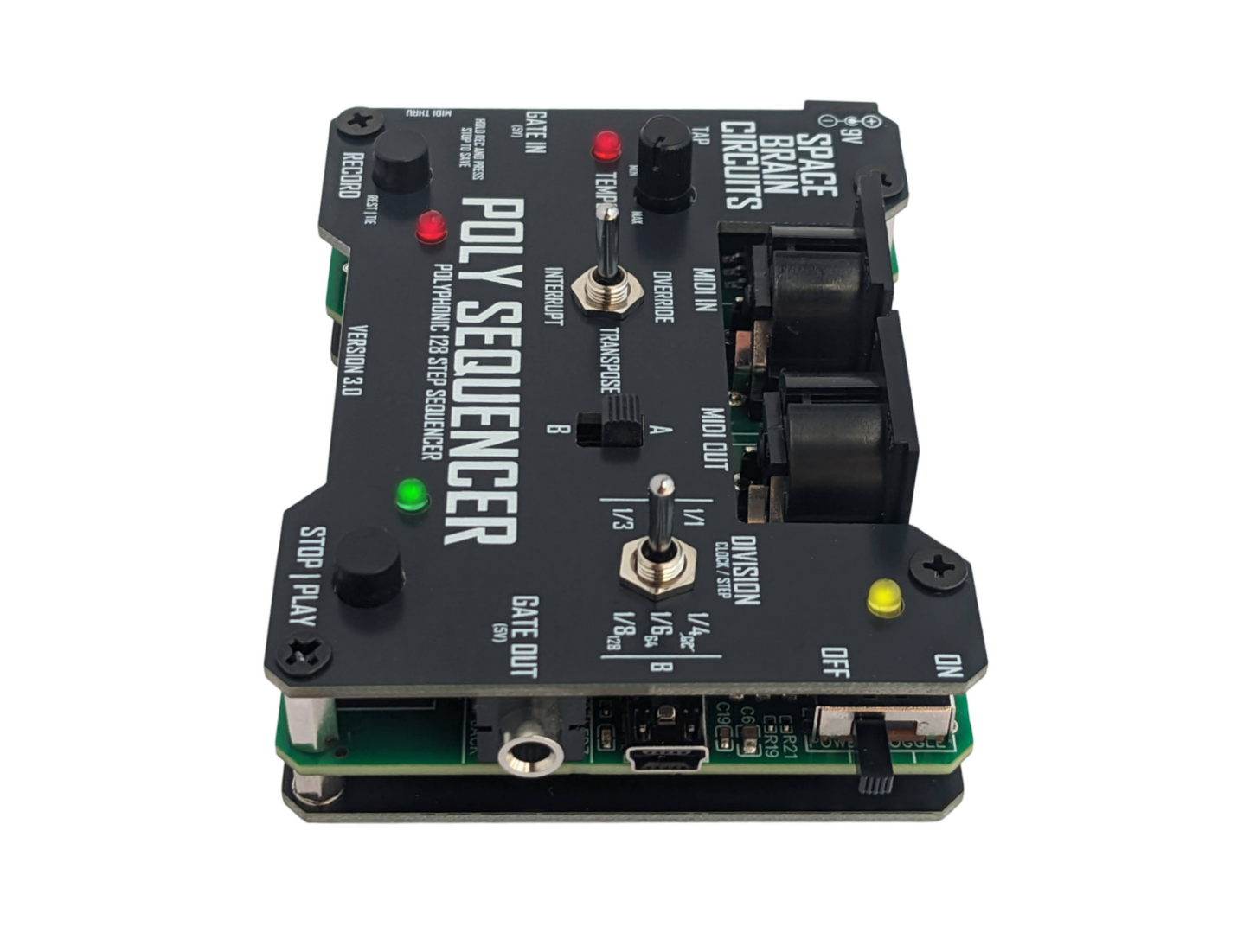

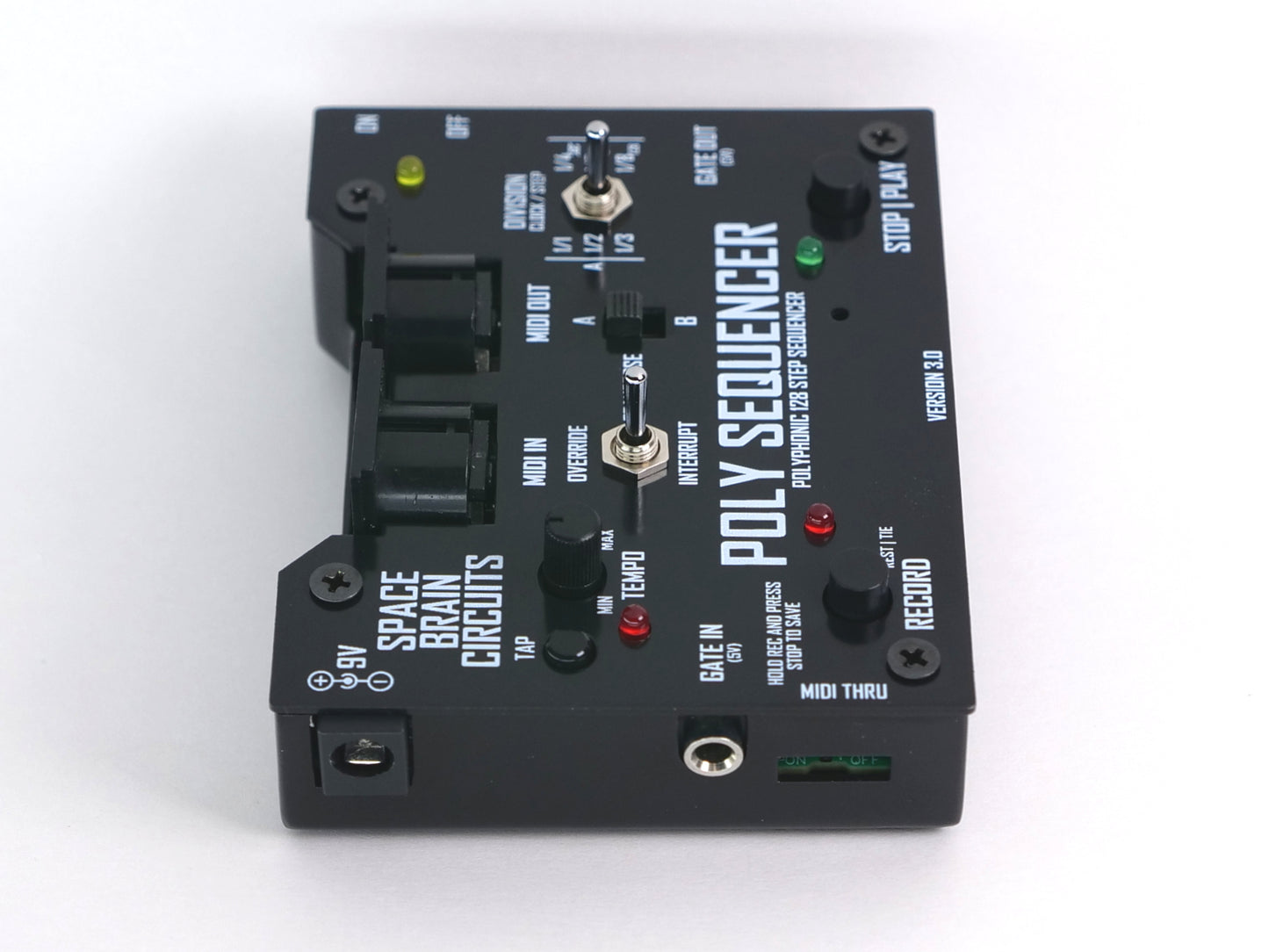

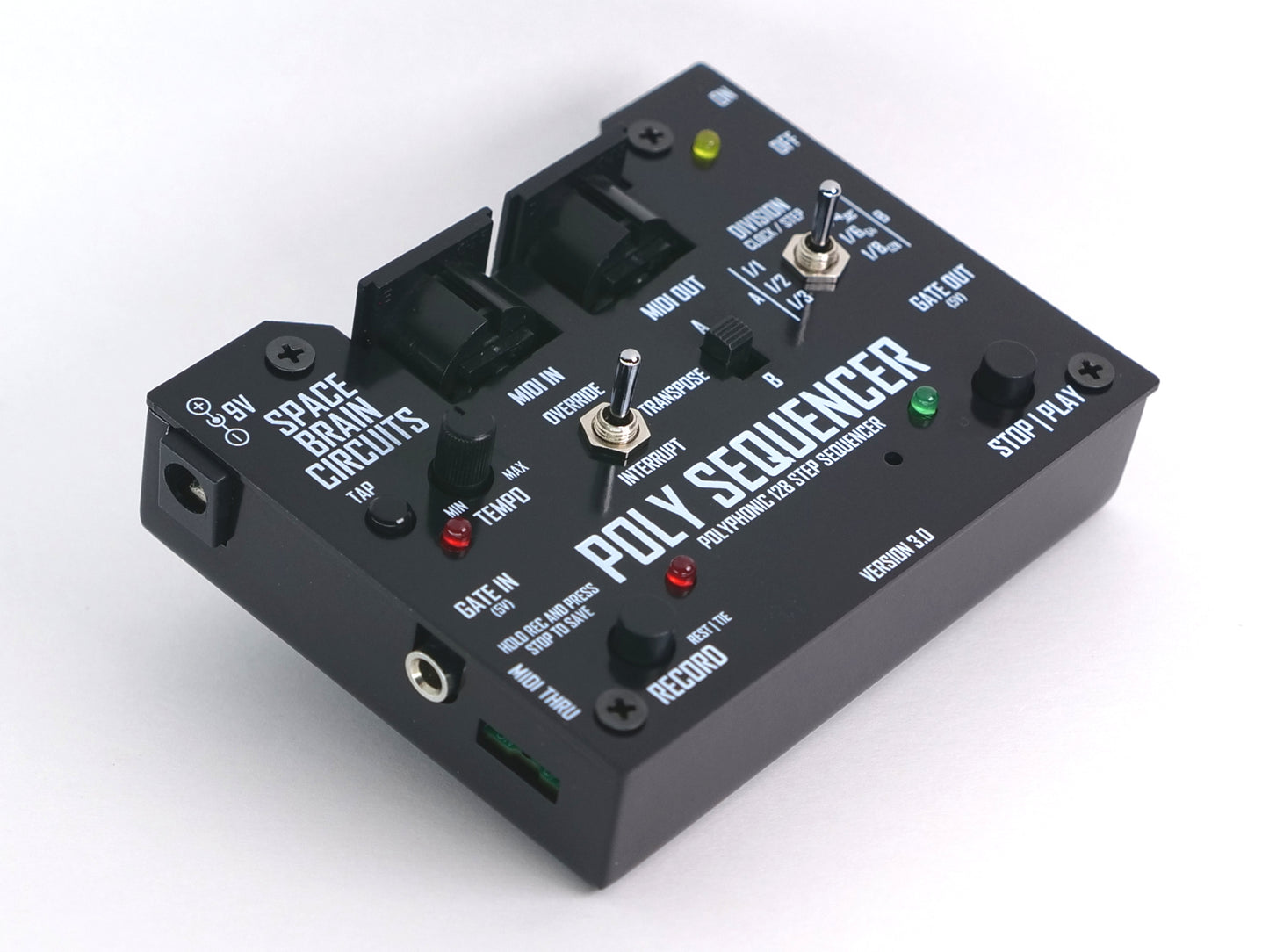

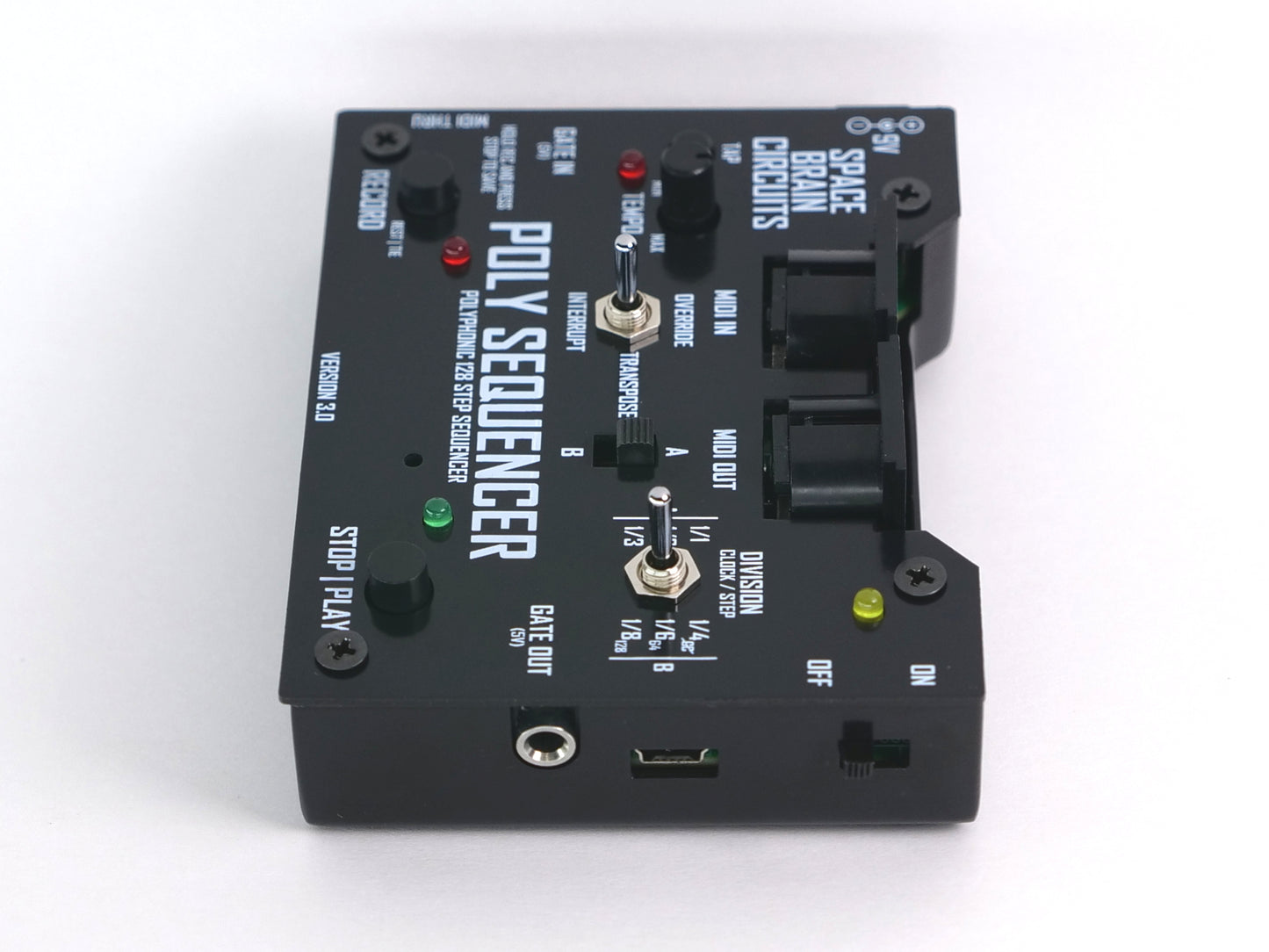

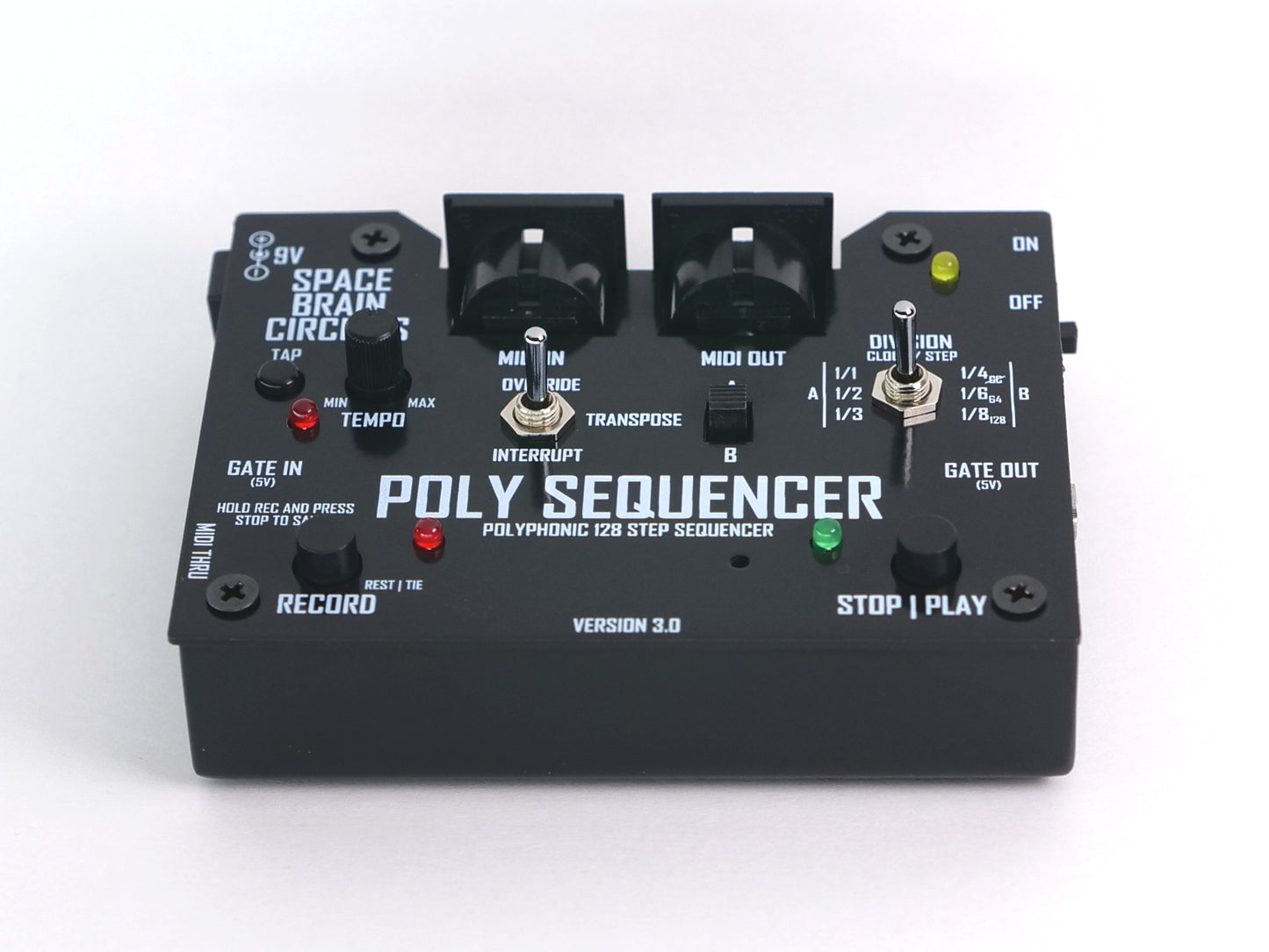

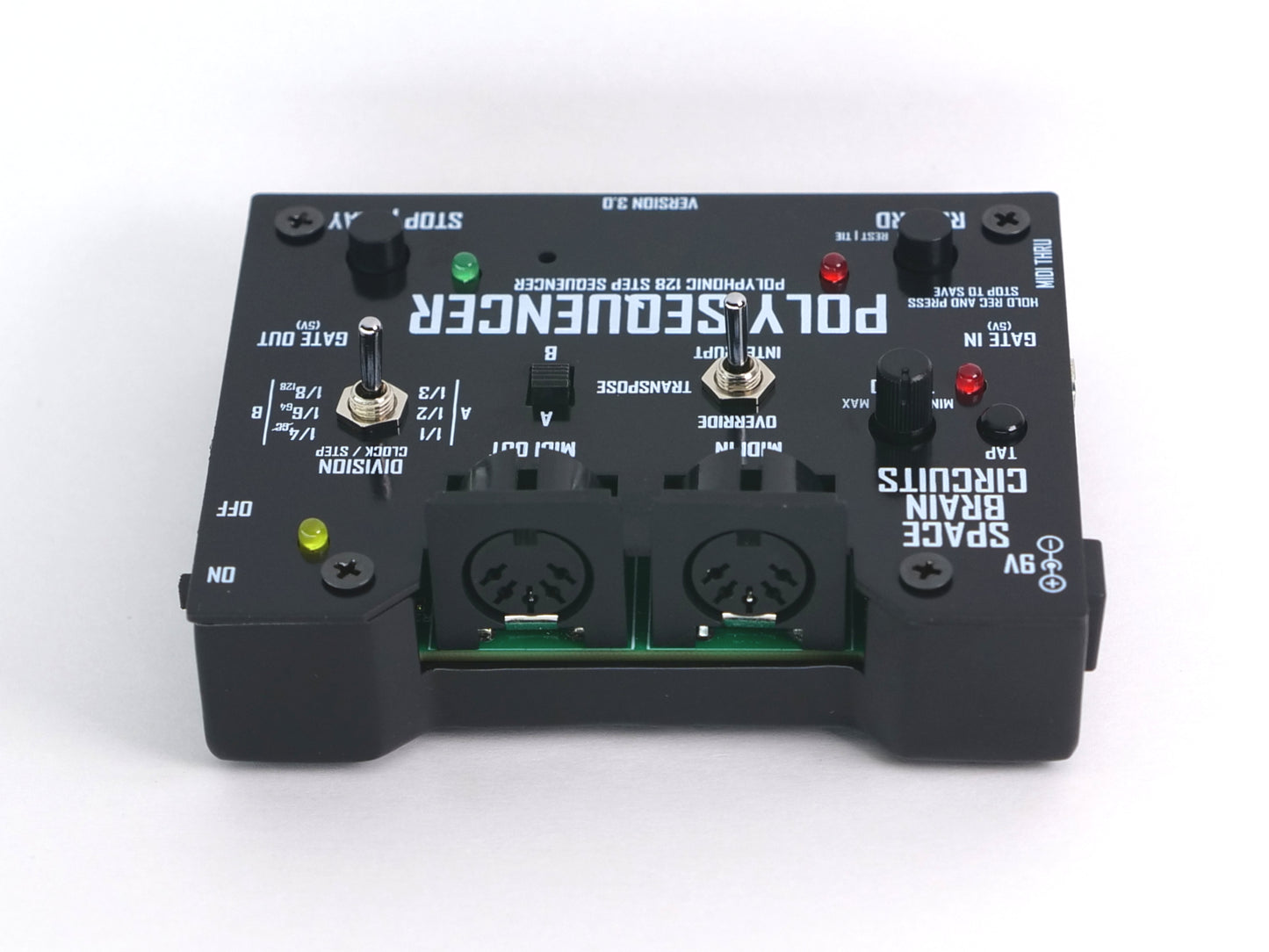

The Poly Sequencer V3 is a MIDI based polyphonic step sequencer that records up to 128 steps. The Poly Sequencer works by recording a sequence by a MIDI controller, and outputting the recorded sequence via an external MIDI enabled device. The Poly Sequencer’s tempo is controlled by the Internal Clock by use of the Tempo Knob or Tap Tempo. However, the Poly Sequencer may also be synced to external gear by use of the Gate In, or receiving MIDI Clock messages. The rate at which the steps are sequenced is controlled by the Division section representing the number of steps played per clock. By Default, the Poly Sequencer can store up to 5 notes per step with 1 Velocity and 1 CC reading, however the user may choose to change the Sequence Type which varies the stored data depending on the mode selected. Additional functionality includes saving, auto generate blank sequences, as well as step override/ interrupt/ transpose during playback. Firmware versions may also be upgraded and/ or changed by USB connection.

Sequence Types:
The Poly Sequencer’s operation may be adjusted depending on the Sequence Type selected. The Sequence Type defines what type of data is stored for each step. For Example, Mode 0 stores up to 5 notes, with 1 Velocity and 1 CC reading per step.

Mode 0 (Default): 5 Notes, 1 Velocity, 1 CC
Mode 1: 4 Notes, 2 CC
Mode 2: 4 Notes, 4 Velocity
Mode 3: 1 Note, 1 Velocity, 3 CC
Mode 4: 0 Notes, 3 CC
Mode 5: 8 Notes

9V center positive DC adapter not included.
